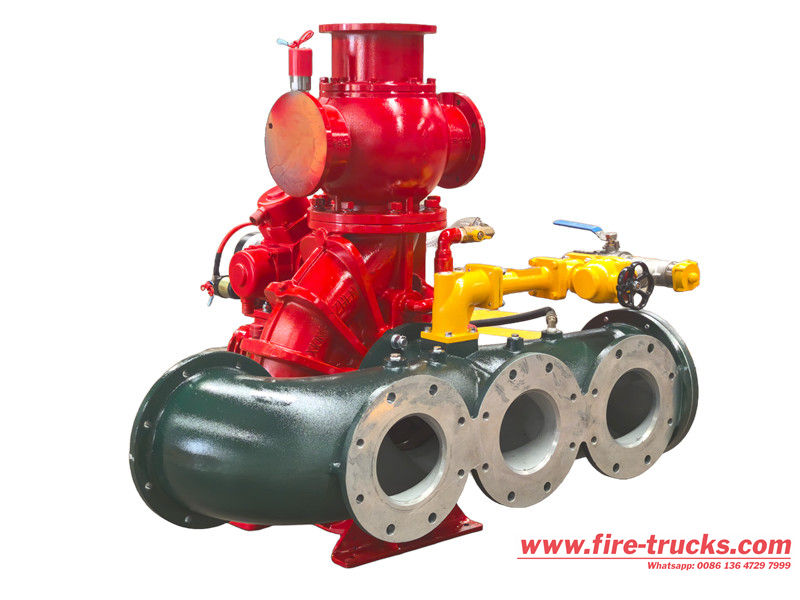

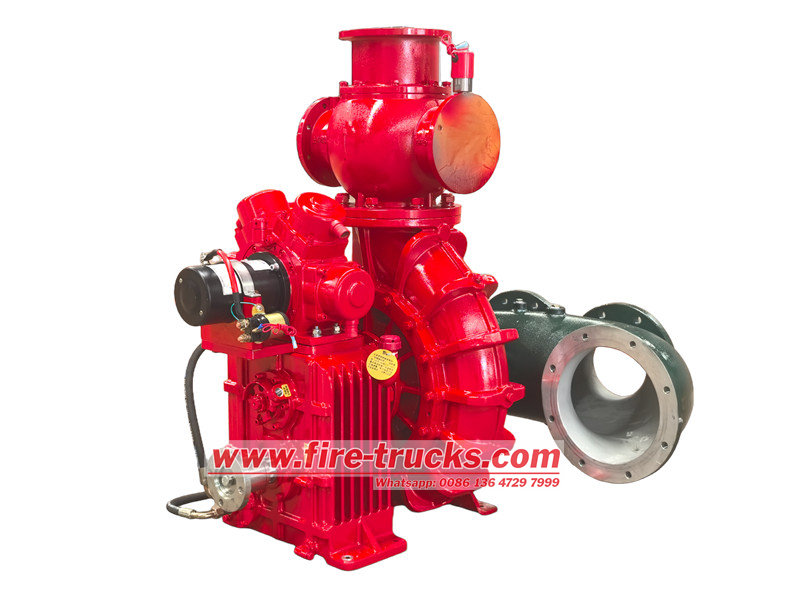

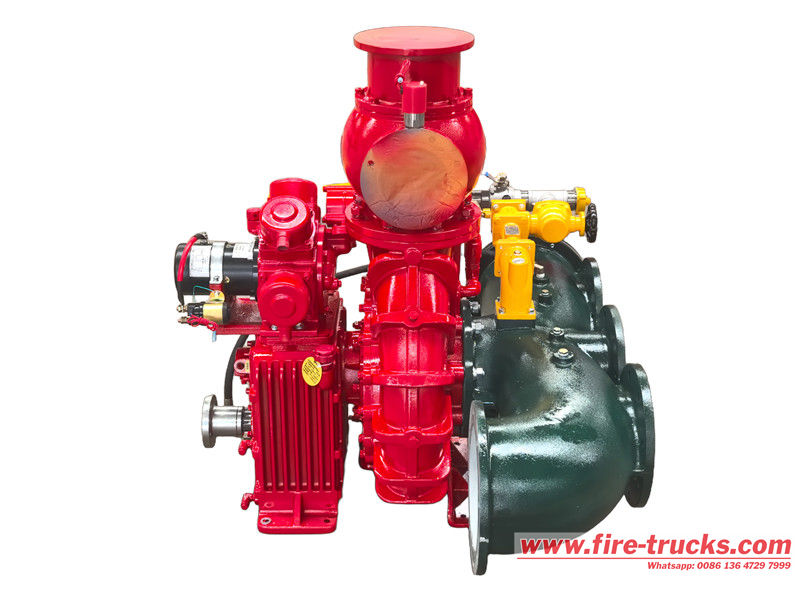

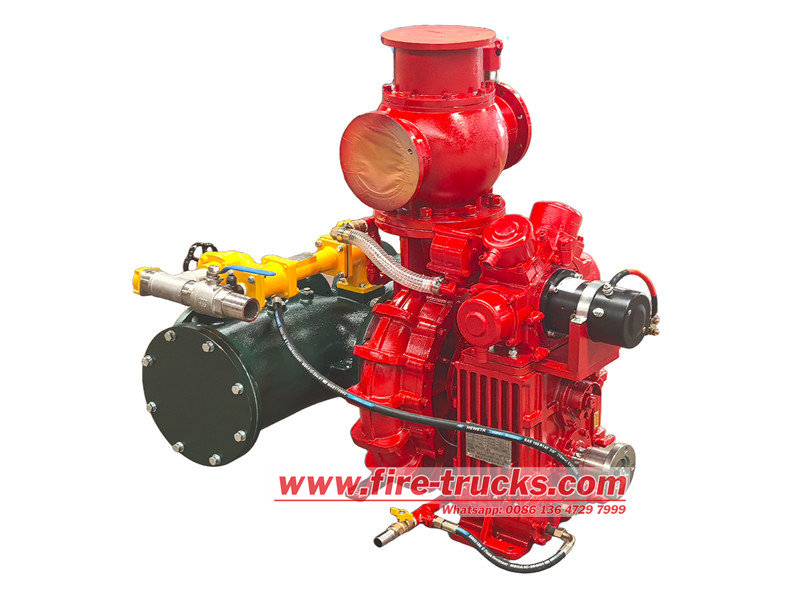

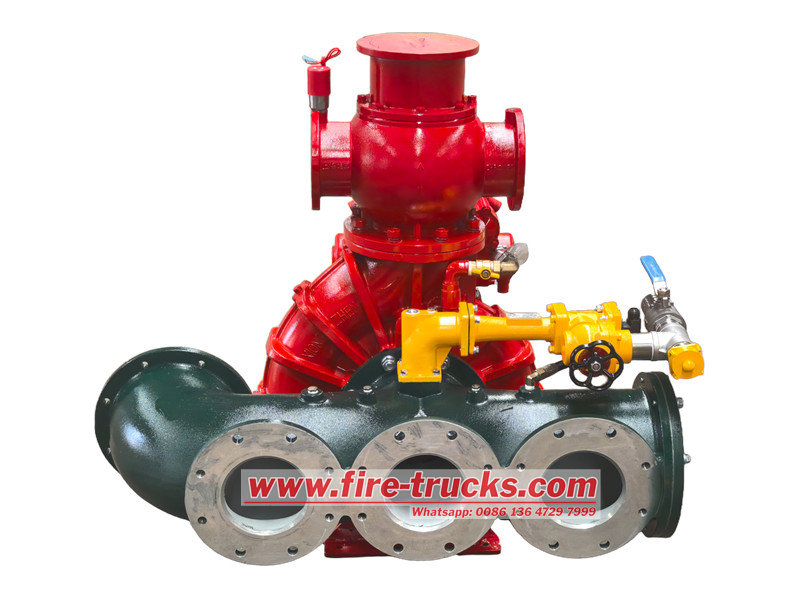

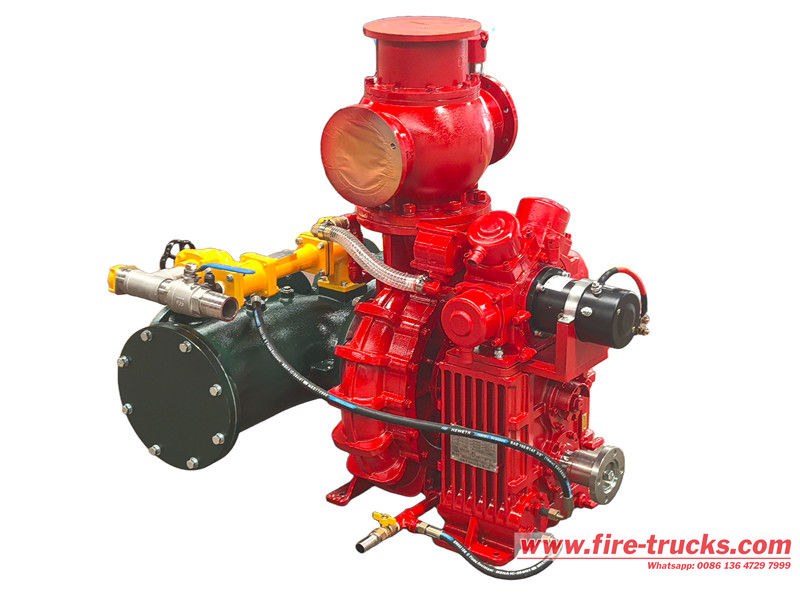

The CB10/140 foam fire fighting pump is a commonly used vehicle-mounted or stationary fire water supply system with a rated pressure of 1.0 MPa and a rated flow rate of 140 L/s, meeting the core water supply needs of firefighting systems. The pump body and impeller are constructed of high-quality, wear-resistant materials, offering corrosion resistance and high-pressure resistance.
It features a dual-inlet design for rapid water source switching and is driven by a high-efficiency motor or diesel engine, achieving a startup response time of 30 seconds or less. With its compact design, easy maintenance, and reliable operation, the CB10/140 foam fire fighting pump is a vital piece of equipment for ensuring efficient water supply for firefighting operations.

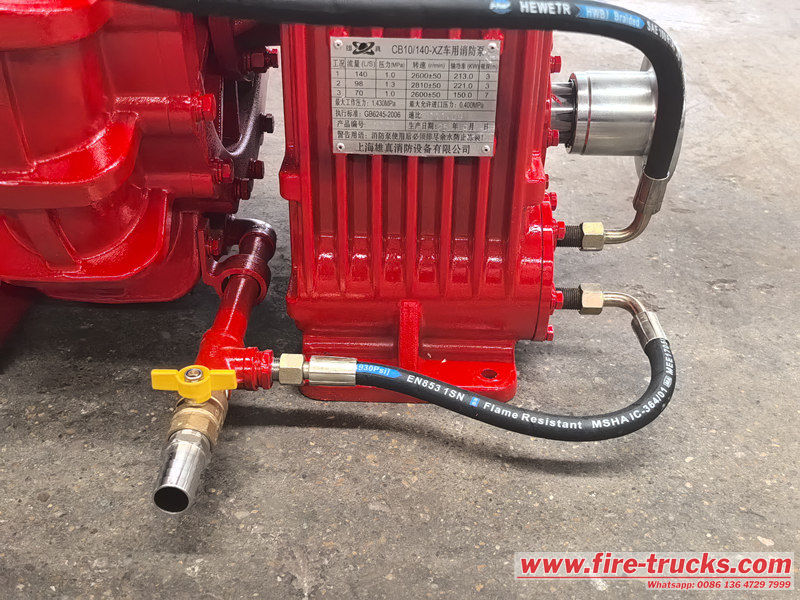

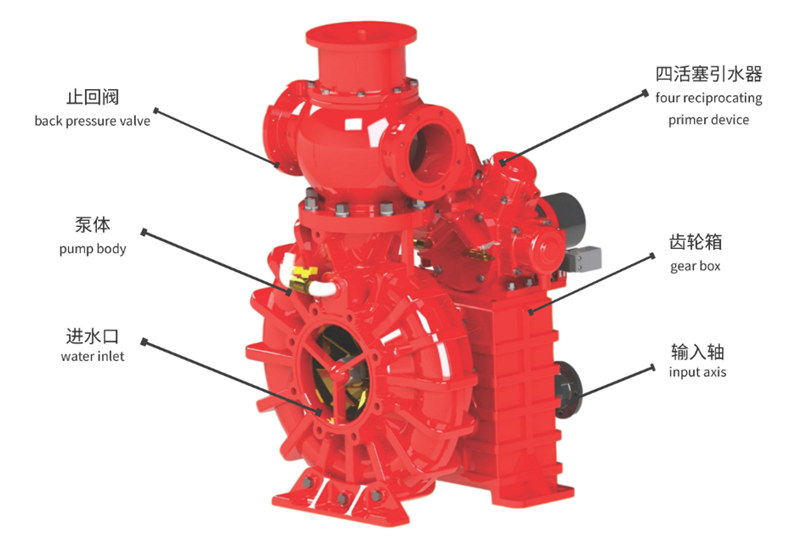

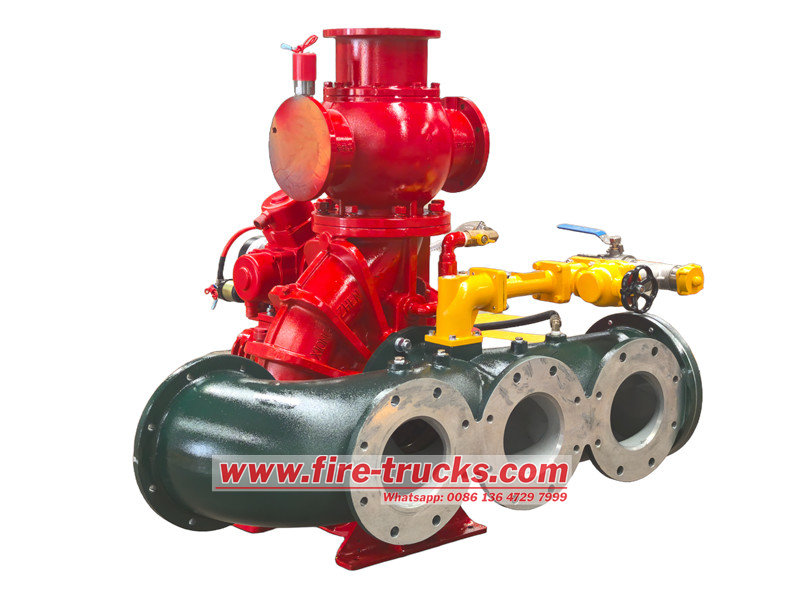

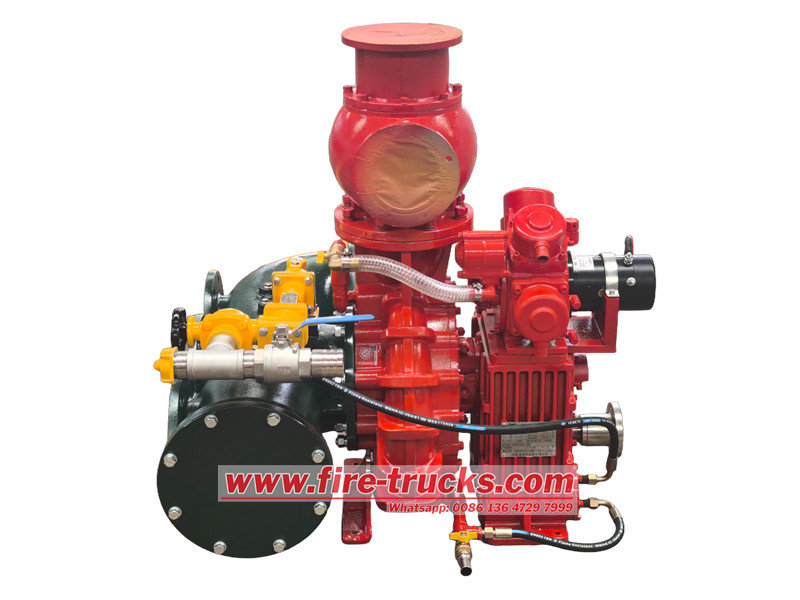

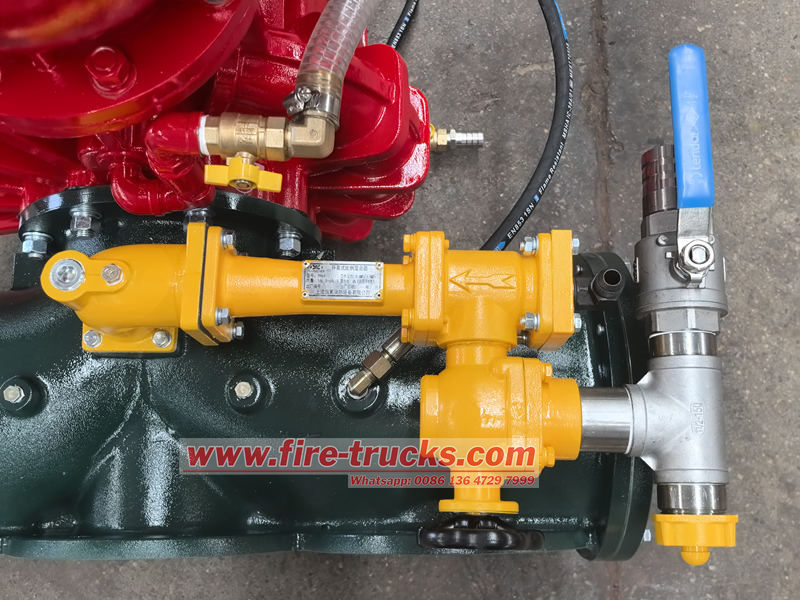

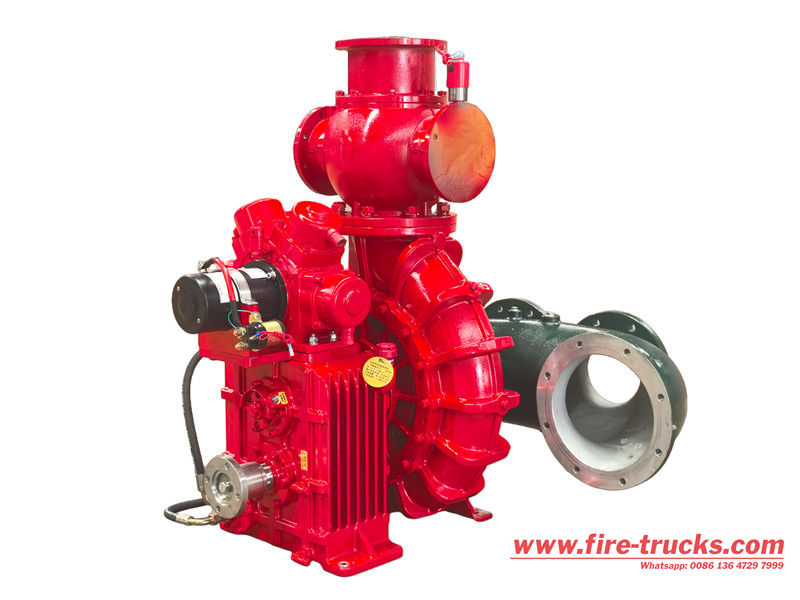

The CB10/140-XZ low-pressure truck-mounted fire pump features a single-stage centrifugal structure with an aluminum alloy pump casing and a brass impeller. It utilizes an electric four-piston water priming system with electric switching. The optional CB10/20 foam pump utilizes a pneumatic separation mechanism. This product offers excellent performance, a compact structure, simple operation, and easy maintenance.

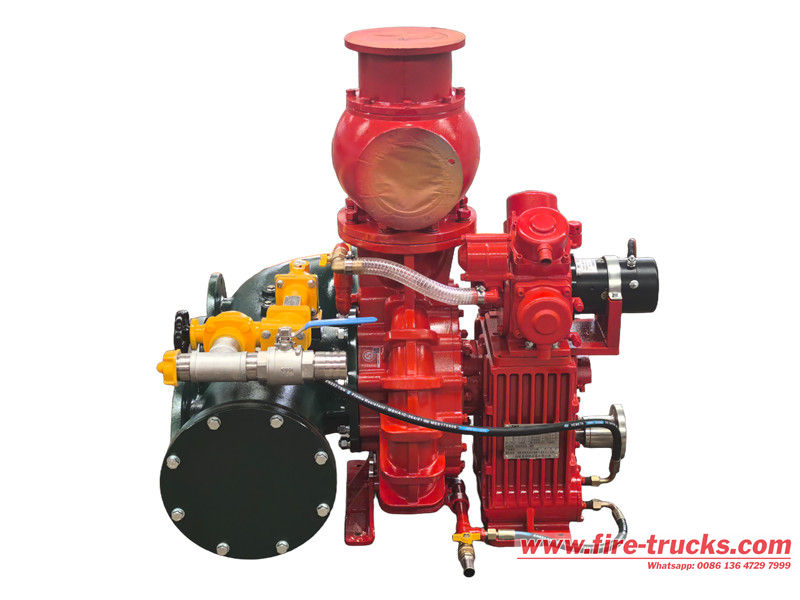

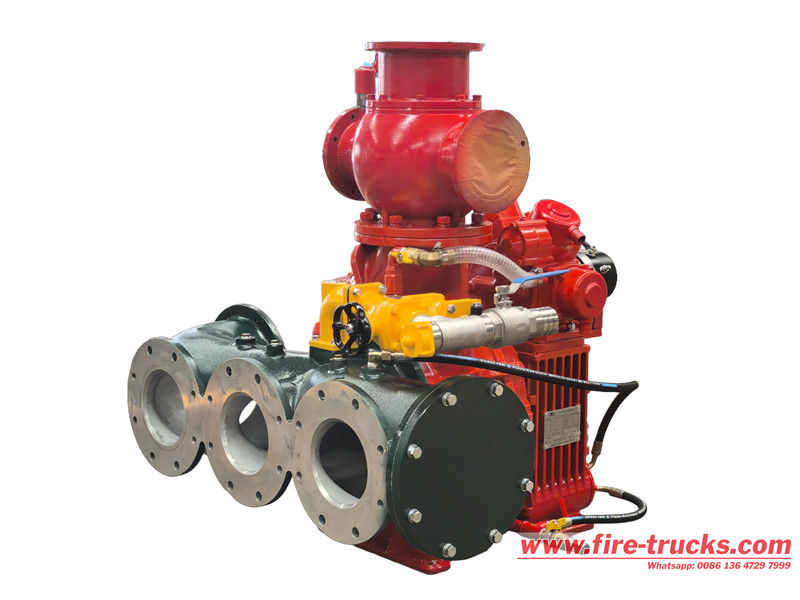

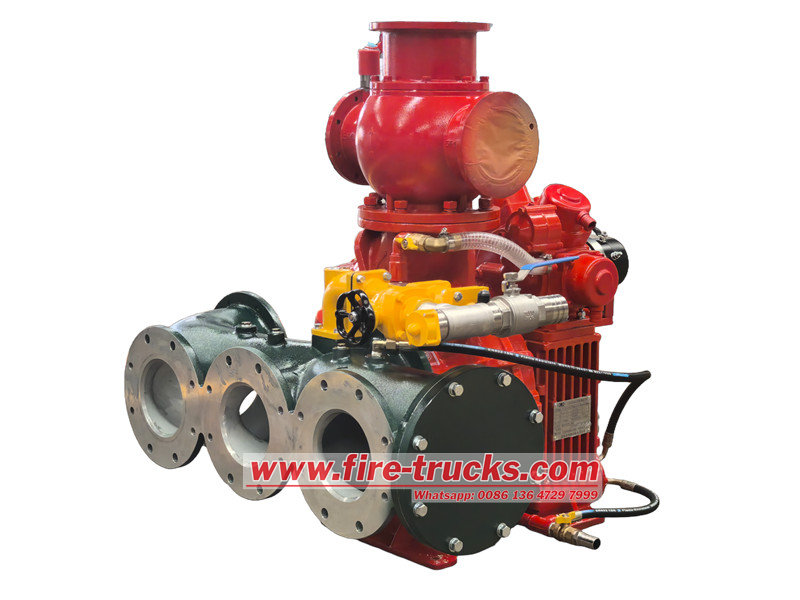

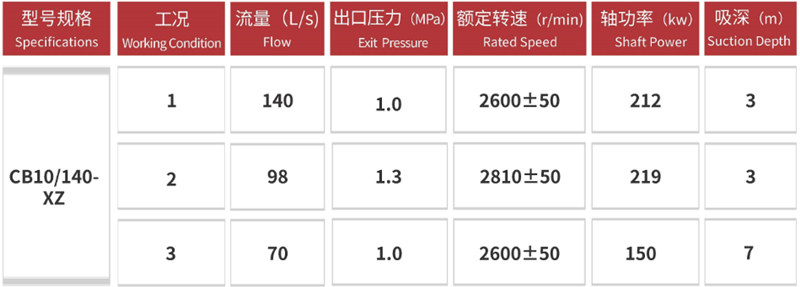

The CB10/140-XZ fire pump is a single-stage centrifugal water pump used in fire trucks, characterized by its two-piston priming device that automatically engages and disengages. It is designed for high performance with a compact structure, easy operation, and convenient maintenance. Key specifications include a flow rate of \(140\) L/s and an outlet pressure of \(1.0\) MPa at a rated speed of \(2600) r/min.
». Working principle of CB10/140 foam fire fighting pump
●Water and foam concentrate intake: Water is drawn from a supply, and foam concentrate is drawn from its storage tank.
●Proportioning: The proportioner mixes the foam concentrate with the water at a predetermined ratio.
●Pressurization: The pump pressurizes the mixture, increasing its velocity and pressure.
●Discharge: The pressurized foam solution is pushed through the discharge hose to the nozzle, where it is discharged onto the fire.
●Fire suppression: The foam blankets the fuel source, separating it from oxygen and extinguishing the fire.
». Detailed introduction of CB10/140 foam fire fighting pump
1. Superior Structural Design, Stable and Reliable Performance:
●The CB10/140 fire pump features a single-stage centrifugal design and is constructed from high-strength aluminum alloy, offering advantages such as light weight, corrosion resistance, and high-temperature resistance.
●The pump's internal structure is precision-machined, ensuring smooth flow and excellent hydraulic performance. A mechanical seal prevents leaks and ensures long-term operational reliability.
●This fire pump boasts powerful suction and discharge capacities, making it suitable for a variety of medium- and large-sized firefighting vehicles and emergency firefighting equipment.
2. Easy Operation and High Adaptability:
♦The CB10/140 foam firefighting pump can be directly connected to the engine via a power take-off (PTO), enabling flexible start and stop operations and rapid response.
♦It boasts excellent self-priming performance, enabling rapid completion of water priming operations and adapting to a variety of water sources, including rivers, ponds, and groundwater.
♦The user-friendly control system offers simple and reliable operation, enabling rapid deployment even in emergency situations, significantly improving firefighting efficiency.
3. Easy Maintenance and Outstanding Safety:
➤The CB10/140 foam firefighting pump is designed with ease of use and maintenance in mind. Access ports are located at key locations for easy routine maintenance and component replacement.
➤The pump body and seals are constructed of wear-resistant materials, extending the service life of the equipment. The system features a safety pressure relief device that automatically adjusts pressure in overpressure situations to prevent damage.
➤With smooth operation, low noise levels, and exceptional durability, it is an ideal core component for various fire truck-mounted and fixed fire-fighting systems.
