Best quality Isuzu FVR 6wheels foam fire fighting truck

Isuzu FVR 6wheels 6cbm foam fire fighting truck is an "all-round warrior" in firefighting and rescue, integrating fire extinguishing, water supply and foam spraying. The large-capacity water tank on the vehicle can store a large amount of clean water to provide a continuous water source for fire fighting; and the special foam fire extinguishing agent contained in the foam tank can quickly cover the fire source and isolate oxygen, especially good at dealing with oil and chemical fires.

The vehicle is equipped with a high-pressure water pump and a multi-functional water cannon, which can not only shoot directly from a long distance, but also spray fan-shaped water mist to cover the fire scene.

Isuzu FVR foam fire fighting truck, also known as Isuzu fire fighting truck, foam pumper fire truck, Isuzu heavy rescue fire truck, Isuzu resuce fire truck, is an impressive firefighting weapon that combines advanced technology with powerful performance.

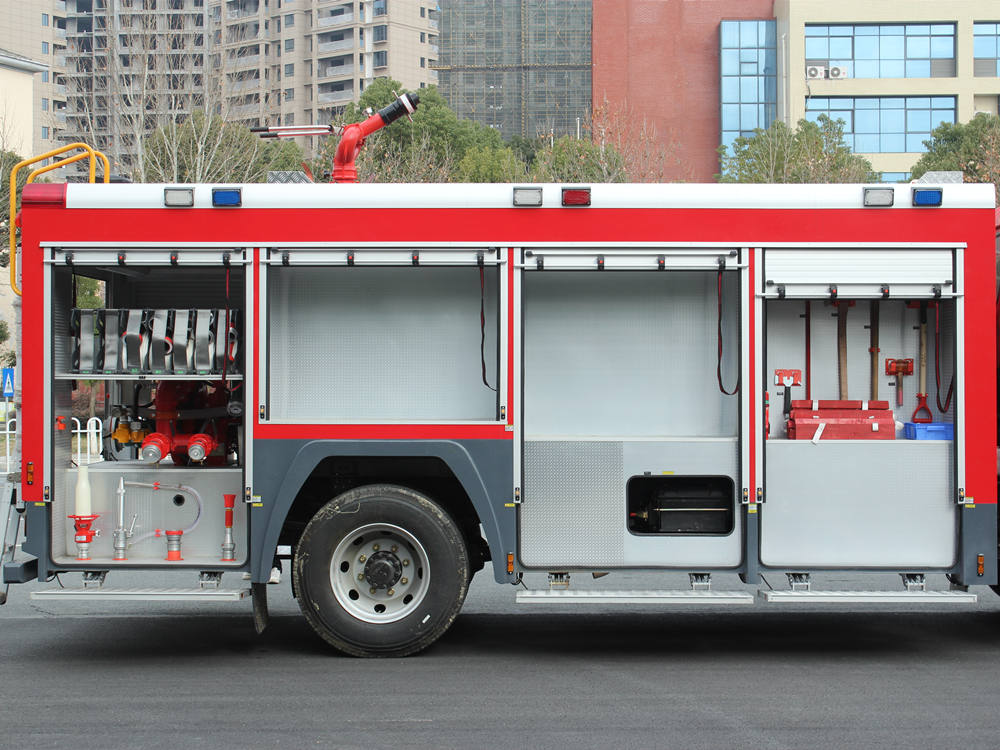

The vehicle body is made of corrosion-resistant steel, equipped with a lighting system, equipment compartment and emergency power generation device, which can meet the firefighting needs of high-risk places such as petrochemical plants and airports, and has both rapid response and continuous combat capabilities.

Isuzu FVR 6wheels 6cbm foam fire fighting truck has a wheelbase of 4500mm, Isuzu 6HK1-TCL 240HP engine, and Fast 8-speed gearbox. It is equipped with 5 cubic meters of water tanks, 1 cubic meter of foam tank, CB10/60 fire pumps, and PL8/48 fire monitors, which have high firefighting efficiency, long range, and wide coverage. The vehicle body is made of high-quality materials, with a sturdy and durable structure that can adapt to various harsh environments. The equipment box and pump room are equipped with a series of firefighting equipment to assist in firefighting.

Isuzu 6wheels foam fire fighting truck
General Specifications
Overall size	8095x2540x3460mm
GVW	18000kg
Curb weight	9200kg
Truck Chassis Specifications
Chassis brand	Isuzu
Cab	Isuzu FVR 4x2 double row,left hand drive,with A/C,USB,direction assistance
Wheelbase	4500mm
Axle loading	6500/11500kg
Engine	Type	Inline 6 cylinders, 4 stroke, turbocharged, intercooled, water cooled,diesle
	Model	Isuzu 6HK1-TCL
	Horsepower	240HP/176KW
	Displacement	7790ml
	Emission standard	Euro 5
Gearbox	Fast 8 speed,manual
Tire	295/80R22.5,6+1 tires
Water tank
Material	Water tank adopt high quality carbon steel Q235A
Capacity	Water 5000L
Main devices	2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room
	1 overflow valve device / 2 drain outlet with ball valve
	2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline
Foam tank
Material	Foam tank adopt high quality #304 Stainless Steel
Capacity	Foam 1000L
Main devices	2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room
	1 overflow valve device / 2 drain outlet with ball valve
	2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline

1. Powerful firefighting capability

Isuzu fire fighting truck is a multifunctional firefighting equipment that integrates water firefighting and foam firefighting. It has excellent firefighting performance and can cope with a variety of complex fire scenes.

▶ High-pressure water firefighting: It uses a large-flow fire pump to spray high-pressure water columns to quickly reduce the temperature of the burning material. It is suitable for solid fires such as wood and paper (Class A fires).

▶ Foam covering firefighting: It is equipped with a foam mixing system that can spray foam fire extinguishing agents to form an insulating layer on the surface of liquid fires such as oils and chemicals (Class B fires), effectively blocking the oxygen supply and preventing re-ignition.

▶ Electrical fire response capability: When ensuring power outages, spray water or foam can be used for firefighting to avoid secondary accidents caused by water conduction.

This model has high firefighting efficiency and fast response speed. It can quickly suppress the fire in the early stage of the fire and buy precious time for subsequent rescue.

2. Vehicle material and structural design

The water tank foam fire truck is made of high-strength and corrosion-resistant materials to ensure stable operation in harsh environments.

➤ Body frame: It adopts a composite structure of high-strength steel and aluminum alloy, which not only ensures impact resistance, but also reduces the weight of the vehicle and improves maneuverability.

➤ Water storage system: It is corrosion-resistant and rust-proof, ensuring clean water quality and high-pressure tolerance.

➤ Foam tank: It has good sealing and chemical corrosion resistance, and can store foam fire extinguishing agents for a long time without deterioration.

➤ Fire pump and pipeline: The key components are made of wear-resistant alloy to ensure that there is no wear and leakage during long-term high-pressure operation.

This material combination makes the fire truck have the characteristics of long life and low maintenance, and adapt to various extreme rescue environments.

3. Core advantages

Isuzu foam water fire truck has significant advantages over ordinary fire trucks:

♦ Multi-function fire extinguishing: It can spray water to cool down and spray foam to isolate oxygen, suitable for Class A, Class B and electrical fires.

♦ Efficient water supply system: Large-flow fire pump (CB10/60 model) can provide a stable high-pressure water source to ensure the continuity of fire extinguishing.

♦ Intelligent fire cannon: PL8/48 model fire cannon has a long range and wide coverage, supports remote control operation, and improves the accuracy of fire extinguishing.

♦ Strong mobility: The lightweight design enables it to quickly reach the fire scene in narrow streets and rugged terrain.

♦ Low maintenance cost: High-quality materials reduce rust and wear, reducing long-term use costs.

4. Wide application scenarios

(1) Petrochemical enterprises

Places such as oil, natural gas, and chemical plants are full of flammable and explosive materials. Once a fire breaks out, it is very easy to cause a chain explosion. Isuzu FVR foam fire fighting truck can quickly spray foam to cover fire sources such as oil tanks and pipelines, effectively suppress combustion, and prevent the disaster from expanding.

(2) Industrial plants and storage logistics

Wood processing plants, textile mills, warehouses and other places are full of large amounts of combustible materials, and fires spread rapidly. This model can use water and foam to extinguish fires at the same time, quickly control the fire and reduce economic losses.

(3) Urban building fires

Fires in high-rise buildings, commercial complexes, residential areas and other places are often accompanied by thick smoke and complex structures. The high-pressure water cannon of Isuzu FVR foam fire fighting truck can spray at a long distance, and the foam system can prevent oil fires (such as kitchen fires) from re-igniting.

(4) Transportation hubs and ports and terminals

Places such as airports, ports, and freight stations are often at risk of fuel leaks or dangerous goods fires. Isuzu FVR foam fire fighting truck can quickly arrive at the scene and use foam to cover the burning liquid to prevent the fire from spreading to surrounding facilities.

(5) Forest and field fires

In the early stages of a forest fire, the Isuzu FVR foam fire fighting truck can quickly open up firebreaks, use high-pressure water cannons and foam to suppress the fire, and buy time for professional forest firefighting teams.
