Annexe tout-terrain FAW 4x4

[si gte mso 9]> Normal 0 7,8 pixels 0 2 false false false EN-US ZH-CN X-NONE

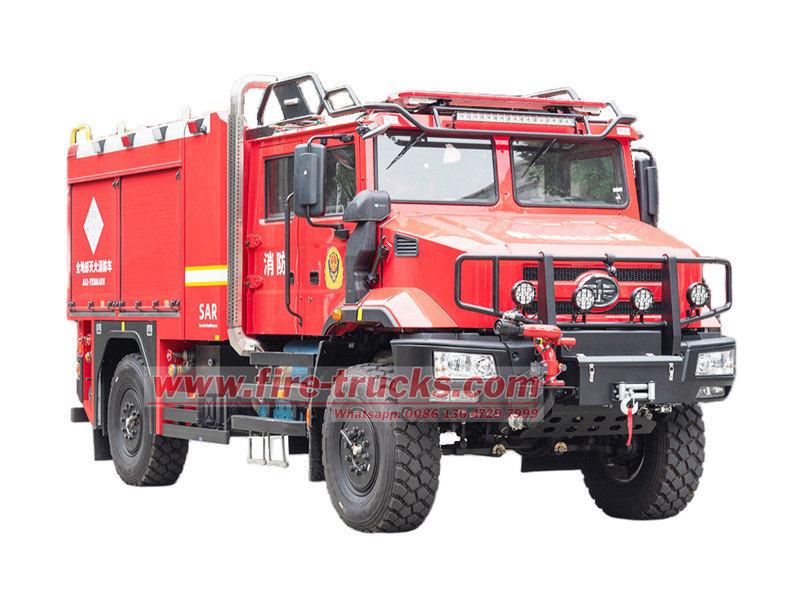

The FAW 4 × 4 All-Terrain Fire Truck is a professional firefighting vehicle designed for extreme environments, capable of performing firefighting and rescue missions in challenging conditions such as mountains, deserts, earthquakes, and floods. The vehicle is modified based on FAW 4 × 4 all-terrain off-road chassis, with overall dimensions of 7,440 × 2,550 × 3,250 mm and a gross weight of 12,900 kg, featuring left-hand drive. Its unique full-time four-wheel drive system, combined with large 395/85R20 14PR off-road tires, grants the vehicle exceptional terrain adaptability, with a maximum gradient of over 60%, a trench-crossing width of 75 cm, a vertical obstacle clearance of 60 cm, and a wading depth of up to 1.5 meters. Notably, this fire truck is equipped with an automatic tire inflation-deflation system that adjusts tire pressure in real-time based on road conditions, significantly improving mobility on complex surfaces like sand and mud.

The FAW 4 × 4 All-Terrain Water Tender is powered by a CA6DL6-35E68 diesel engine, an 8.57-liter powerplant compliant with Euro VI emission standards, delivering a maximum power output of 261 kW (350 hp). The engine utilizes advanced turbocharging technology and a common-rail fuel injection system, ensuring robust performance even in high-altitude, low-oxygen environments. It is paired with a 9-speed automated manual transmission that offers smooth shifting and ease of operation, significantly reducing driver workload in complex terrains.

As a professional firefighting vehicle, the FAW 4 × 4 fire engine is equipped with a comprehensive firefighting system. Its 2,000-liter stainless steel water tank is constructed from high-quality materials and includes a manhole, overflow/pressure relief devices, a liquid level sensor, and a drainage port to ensure safe and reliable water supply. The CB10/30 standard-pressure fire pump has a rated flow of 30L/s, an operating pressure of 1.0 MPa, a suction depth of 7 meters, and a startup time of less than 50 seconds, enabling rapid deployment for firefighting operations. The PS8/20W fire monitor operates at 0.8 MPa, with a water jet range exceeding 45 meters, 360 ° horizontal rotation, and a vertical elevation range of -35 ° to 70 ° , offering flexible operation and wide coverage. This system is particularly suited for long-range, high-altitude firefighting missions and can quickly replenish water from external sources in arid regions to sustain prolonged operations.

The FAW 4 × 4 Off-road Firefighting Truck excels in environmental adaptability. It can operate reliably in extreme temperatures ranging from -40 ° C to 45 ° C, making it ideal for firefighting needs in both frigid and scorching regions. Its high-altitude performance is equally impressive, maintaining stable operation at altitudes above 5,000 meters, making it an optimal firefighting solution for plateau areas.

● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

Product Specifications

[if gte mso 9]> Normal 0 7.8 磅 0 2 false false false EN-US ZH-CN X-NONE

Caractéristiques du produit

Principales caractéristiques du camion-citerne d'incendie FAW 4×4 :

1. Résistance au froid : Fonctionne à des températures de -40°C à 45°C.
2. Capacité à haute altitude : Fonctionne à des altitudes supérieures à 5 000 mètres.
3. Large application : Conçu pour les missions de lutte contre les incendies et de sauvetage dans les forêts, les prairies et autres environnements difficiles.
4. Mobilité supérieure : Transmission intégrale permanente avec système de gonflage-dégonflage automatique des pneus pour gérer divers terrains complexes ; profondeur de gué maximale de 1,5 mètre.
5. Fonctionnement intelligent : Système intelligent de lutte contre l'incendie à une touche avec capacité de contrôle à distance sans fil.

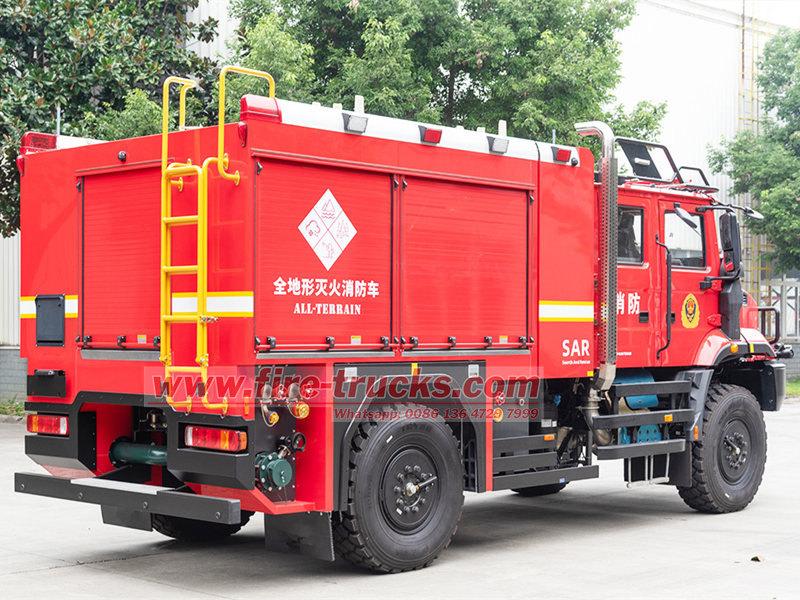

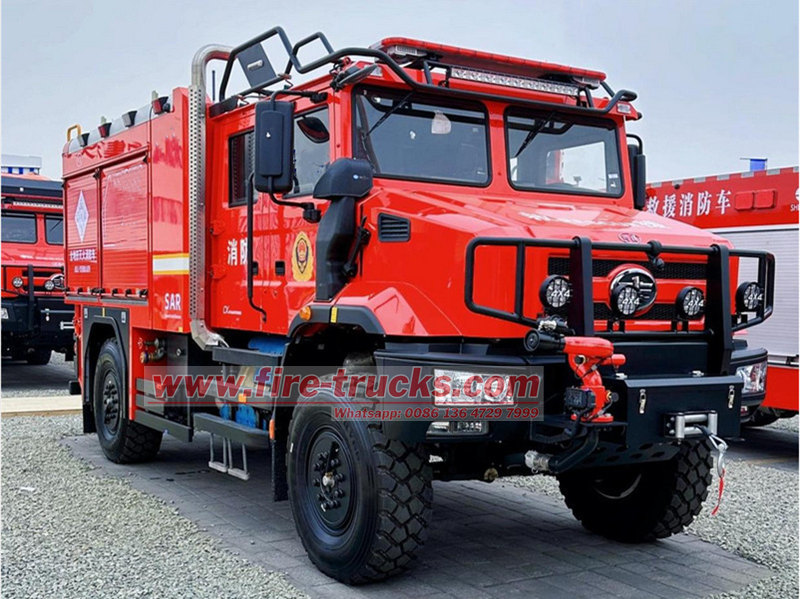

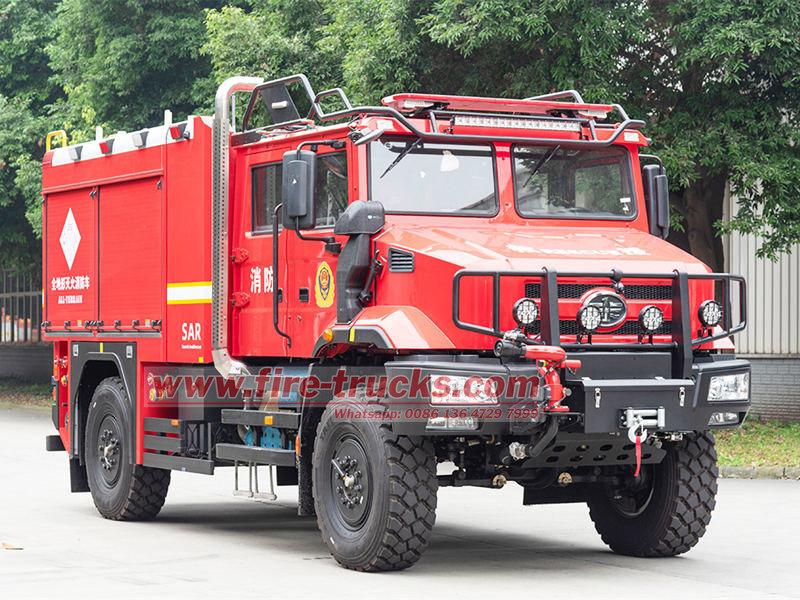

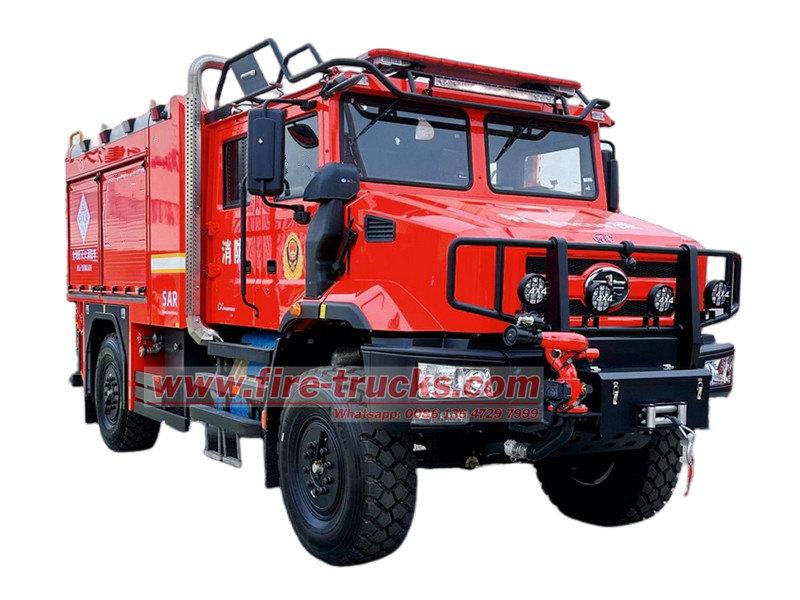

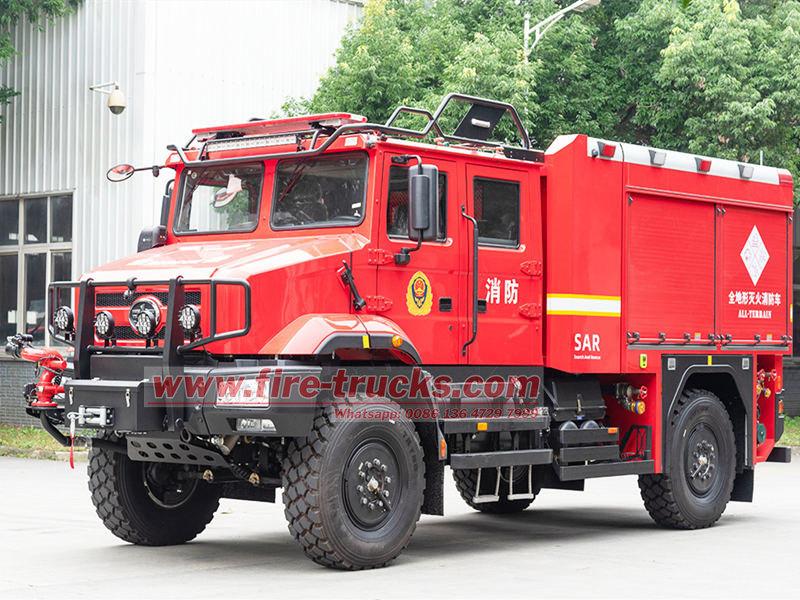

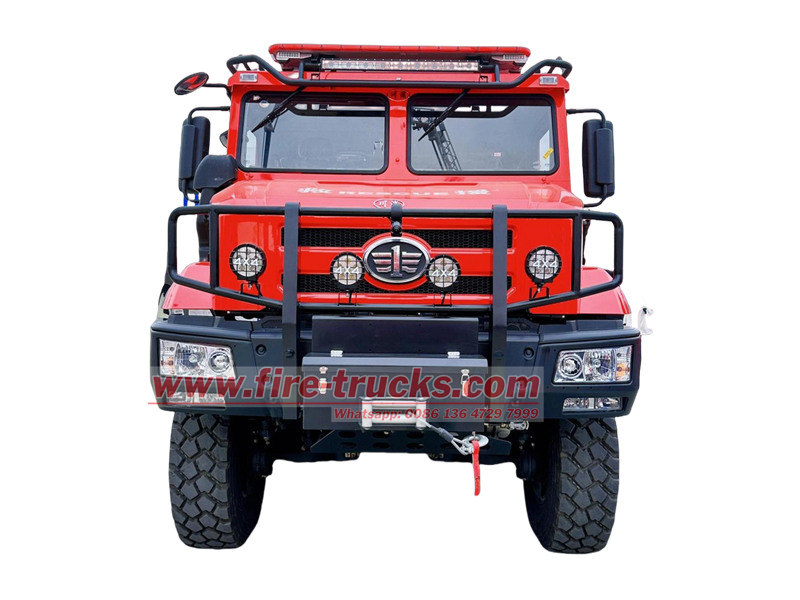

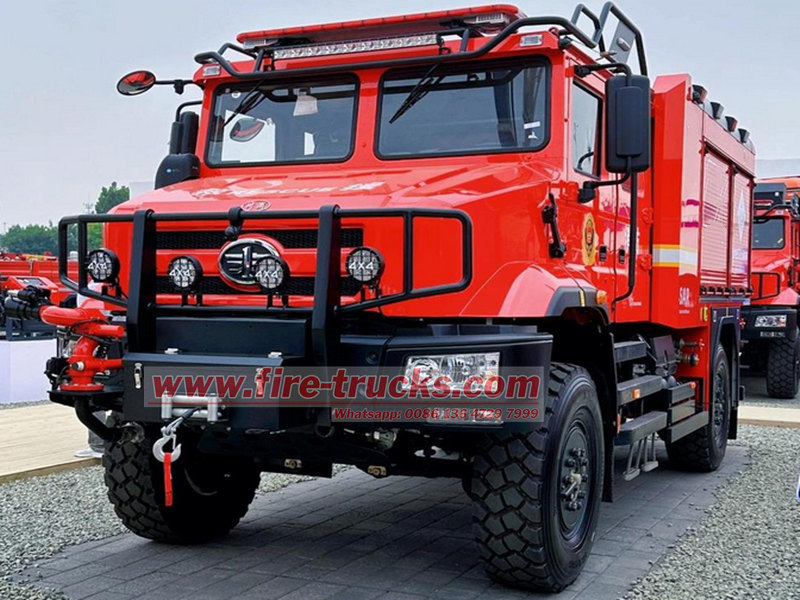

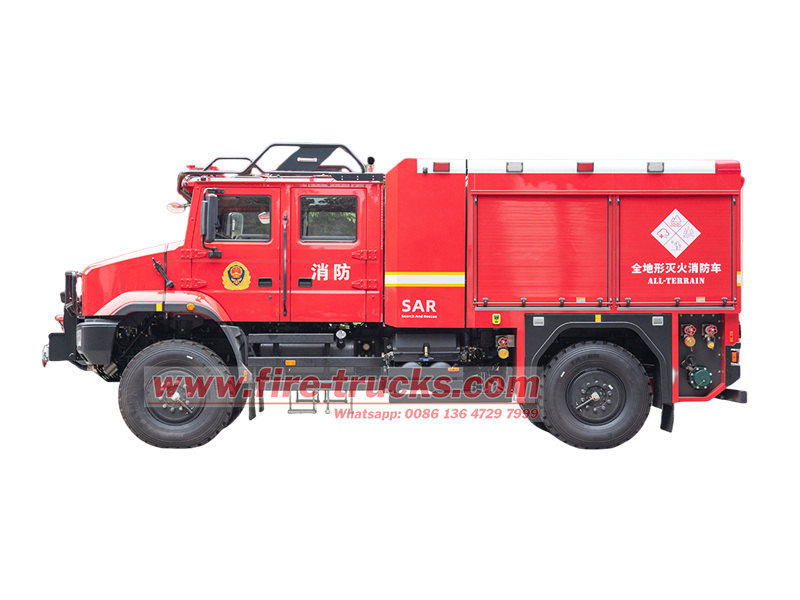

Photos du produit
